Designed for larger excavations, our H Frame Series Double Acting Manhole Frame is a tried and tested bracing system with interchangeable brace leg sizes.

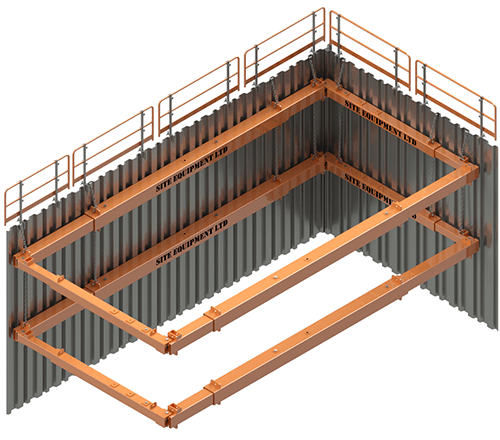

This high capacity shoring system is an extremely robust and adaptable system that can be used alongside trench sheets to create manholes or larger tank excavations at depth.
When digging excavations, always remember to take into account the measurements for the Trench Sheet pan depth as well as the Manhole Frame section.
Hire H Series Manhole Frame
For more information and hire rates for the H Series Manhole Frame or any of our bracing systems range, please contact your nearest depot or call us on 0117 982 8236.
|Type||Sheet to Sheet Range||Section Size||Leg Weight||Min Extension||Max Extension|
|H40||3030 – 3830||250||490||108||76|
|H40X||3000 – 4500||250||550||160||70|
|H47||3680 – 4480||250||529||86||54|
|H60||4000 – 6000||250||800||95||41|
|H75||5500 – 7500||300||1270||70||37|
|H80||5000 – 8000||300||1284||93||35|
|H90||7000 – 9000||350||1550||60||35|
|H90X||7000 – 11000||350||2000||64||25|
For clear internal distances, please subtract 360mm from the sheet to sheet measurement. Please note this does not allow for deflection.
