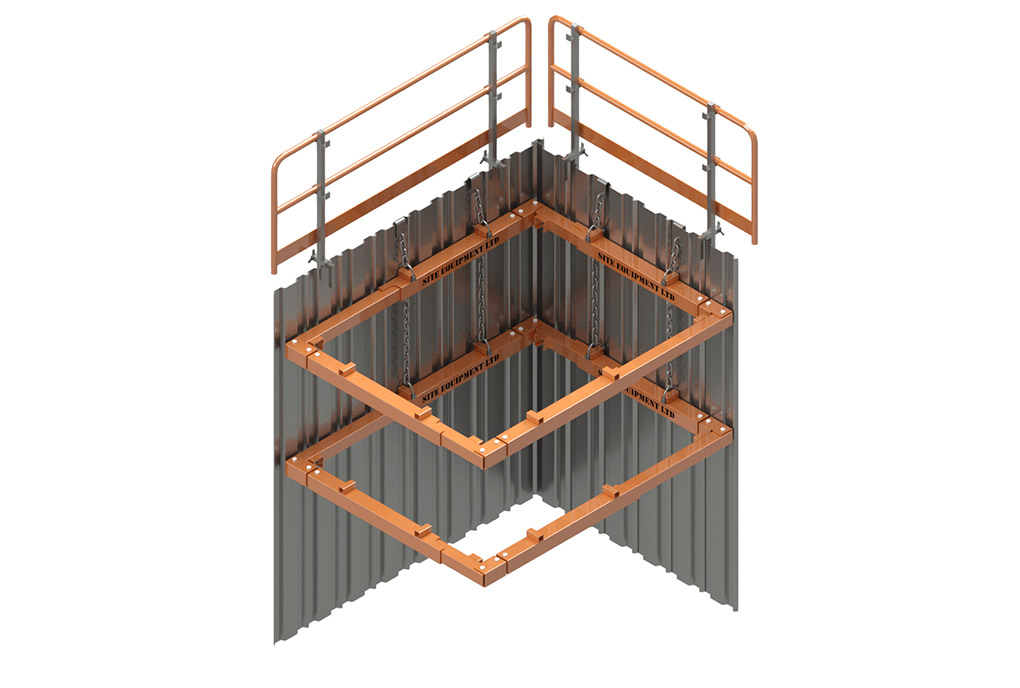

Single Acting Brace System

Easily brace excavations between 1.8m and 2.7m, and up to 3m deep

  • Ideal where a small machine is being used
  • Simple pin-and-joint connection method
  • Max permissible load of 38 kN/m
  • Easy to assemble
  • Nationwide delivery


The Single Acting Brace System is light and simple to use — ideal for excavations with a sheet-to-sheet range of 1.8m – 2.7m and where a small machine is being used.

The excavation can be up to depths of 3 metres in good ground, with the Single Acting Brace System utilising a simple pin-and-joint connection method to brace the trench or hole.

Consisting of a series of single piece hydraulic legs, the system is easy to assemble and can be installed and disassembled on site.

Our AA brace system offers a max permissible load of 38 kN/m.

Hire Single Acting Brace System

For more information and hire rates for the single acting brace system or any of our other bracing systems range, please contact your nearest depot or call us on 0117 982 8236.

Single Acting Brace System Info Sheet

Dimensions and limits

TypeSheet to SheetFrame WeightPermissible Load
m kg kN/m
AA1.8m min 2.7m max40038 – 12.8
