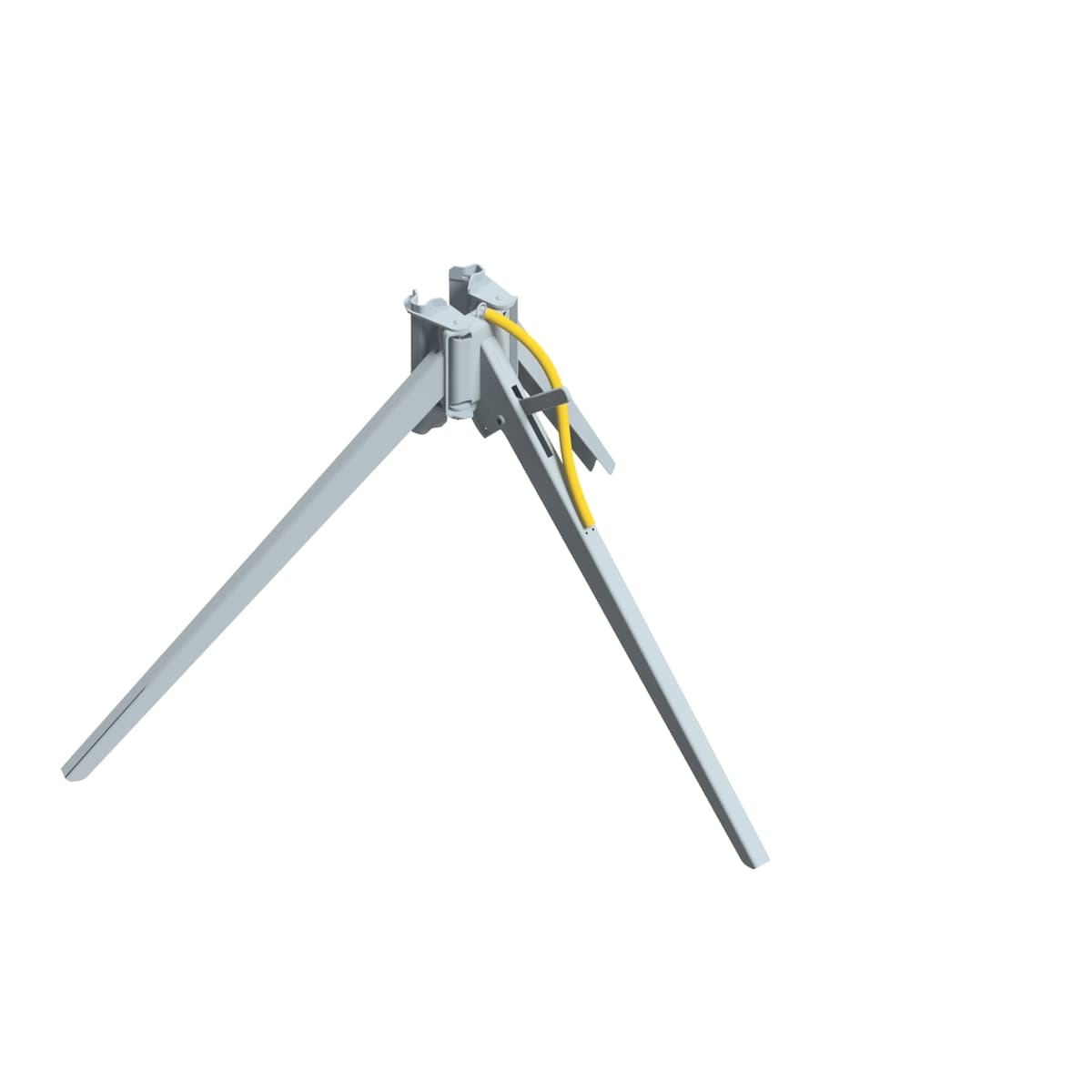

Removable folding tripod top
A folding tripod that holds floor props upright and stable during erection of the deck.
- Props stand unaided during erection
- Folds flat for transport and storage
- Removable once the deck is self-supporting
- Competitive rates
- Nationwide delivery
The removable folding tripod top clamps around the base of a Eurex floor prop so the prop stands plumb and unaided, which is the first step in erecting a Dokaflex soffit support system.
Erection of a Dokaflex deck starts from a corner, standing Eurex props with tripods on a regular grid, typically 2m × 3m for slabs up to 300mm thick. With a tripod holding each prop, one operative can set out and level the props, drop on the lowering heads and lift in the H20 primary beams without a second operative holding the props.
The legs fold in for compact transport and storage, and the clamp releases so the tripod can be removed and reused as soon as the deck is self-supporting. Legs can be positioned to suit walls and corners, and the galvanised finish stands up to repeated site use.
Part of the Dokaflex system
We hold the complete Dokaflex kit at our Bristol, Cardiff and London depots: Eurex 30 props, H20 timber beams, lowering heads, 4-way heads and supporting heads. Temporary Works Design is available for more complicated slabs.
Next Steps
To hire or buy the removable folding tripod top, contact our nearest depot or call us on 0117 982 8236 for current rates and availability.
