Supporting head H20 DF
A lightweight prop head that secures intermediate floor props to H20 beams and prevents toppling.
- Just 0.77kg per head
- Keeps intermediate props upright
- Fits Eurex floor props
- Competitive rates
- Nationwide delivery

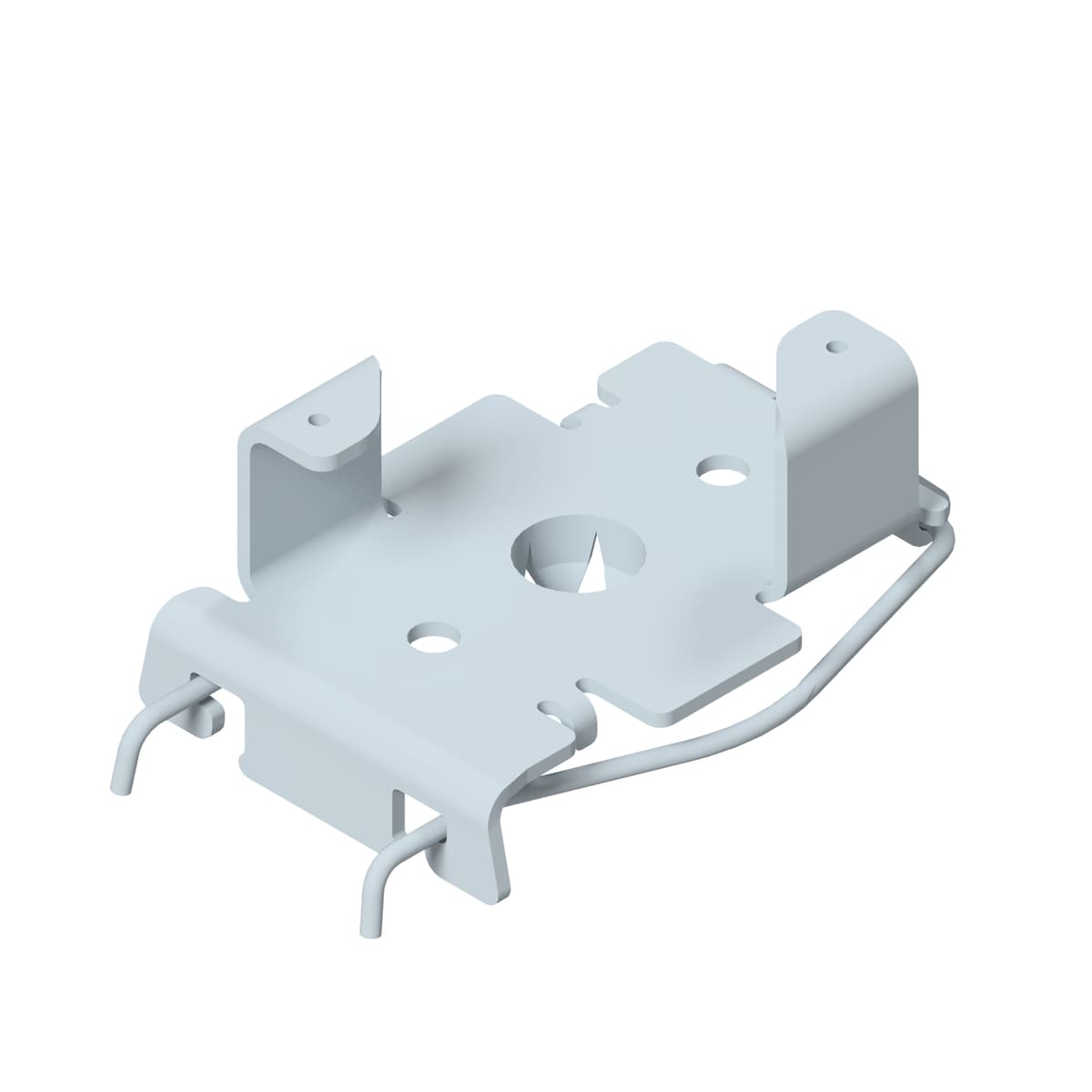

The supporting head H20 DF connects an intermediate Eurex floor prop to the underside of an H20 primary beam, holding the prop captive so it cannot topple.
In a Dokaflex soffit support system, the main props at the beam ends carry lowering heads, while intermediate props, typically at 1m centres along the primary beams, are topped with supporting heads. The head locates the beam and keeps the prop plumb and secure while the deck is loaded and poured.
At only 0.77kg and with a simple push-on fit, it is quick to place and strip by hand. When striking the deck, the intermediate props with supporting heads are removed first, before the lowering heads are struck and the deck dropped.
The head is hot-dip galvanised and is supplied in packs of ten.
Part of the Dokaflex system
We hold the full Dokaflex kit at our Bristol, Cardiff and London depots: Eurex 30 props, H20 timber beams, folding tripods, 4-way heads and lowering heads. Temporary Works Design is available for more complicated slabs.
Next Steps
To hire or buy supporting heads H20 DF, contact our nearest depot or call us on 0117 982 8236 for current rates and availability.
