Excavator Mounted Vibrators

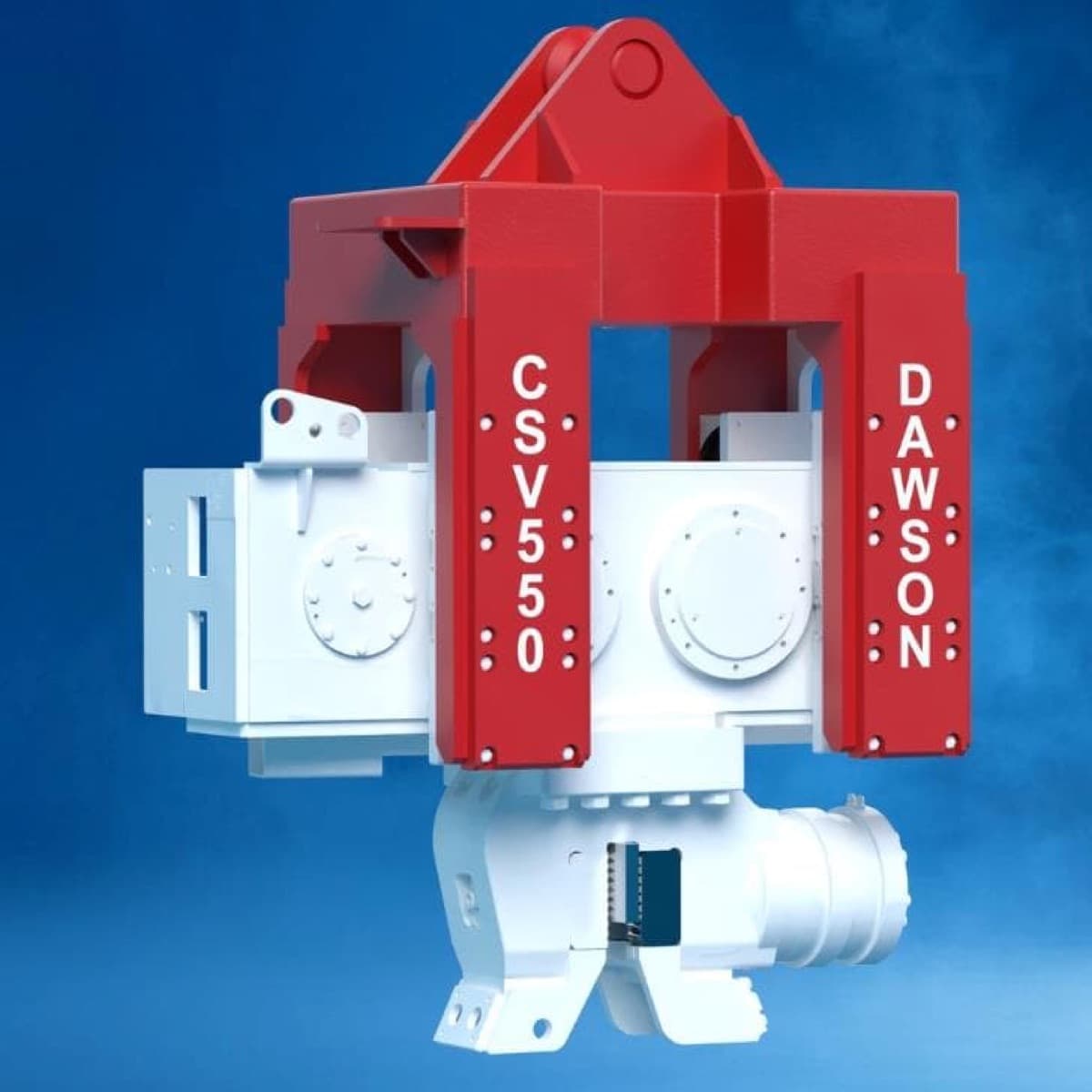

An Excavator Mounted Vibrator (EMV), also called a vibro hammer or a sheet pile hammer, is an attachment that turns an excavator into a highly efficient sheet pile driving and extraction rig. With powerful hydraulic gripping, high-frequency vibration, and excavator down-crowd force, these units deliver fast, effective, and cost-efficient piling solutions for trench sheets, H-piles, and timber posts.

Ideal for civil engineering, groundworks, and infrastructure projects, an EMV allows you to work without the cost and footprint of a dedicated piling rig. They offer immense versatility on site, allowing the same machine used for excavation to rapidly pivot to soil retention and groundworks support.

Operational Mechanics and Soil Liquefaction

The core principle behind an excavator mounted vibrator is soil liquefaction achieved through harmonic excitation.

Inside the EMV unit, rotating eccentric weights (usually in counter-rotating pairs) generate high-frequency vertical oscillations. This motion is transferred directly into the trench sheet, creating a sinusoidal force that eliminates lateral shaking and focuses energy downward into the ground.

As these vibrations propagate into the surrounding saturated or granular soil (such as loose sands or gravels), they cause the soil particles to vibrate rapidly. This process temporarily breaks the friction bonds between particles, neutralizing effective stress and causing the soil to transition into a "quasi-fluid" state. In this liquefied state, the shear strength of the soil drops sharply, allowing the trench sheet—assisted by its own weight and the static down-force (crowd) of the excavator—to penetrate the ground with significantly less resistance. Once the vibration stops, the soil particles immediately re-establish contact, friction is restored, and the trench sheet achieves its full load-bearing capacity.

Engineering Principles and Performance

High Efficiency Operation Operating at high frequencies (typically between 2,150 and 3,000 RPM), the EMV ensures smooth trench sheet penetration. This drastically reduces the pulling force required during extraction compared to static pulling, making sheet removal safer and preventing crane overloading.

Low Impact for Sensitive Sites High-frequency vibration is highly directional and localized. This results in reduced noise profiles and minimal ground-borne vibration transmission to the surrounding area. For urban environments, heritage sites, or near existing fragile structures, high-frequency EMVs are significantly safer and less disruptive than traditional drop hammers.

Fast and Simple Setup The unit attaches to a standard excavator quick-hitch and runs off the existing auxiliary hydraulic circuits. This eliminates the need to transport and rig a dedicated piling crane, reducing transport costs, minimizing site congestion, and streamlining the temporary works phase.

Safety Guidelines and Best Practices

Operating an EMV requires strict adherence to safety protocols to prevent equipment damage and ensure site safety:

• Never Force the Sheet Pile: While an EMV relies on the down-crowd force of the excavator boom, you must never force the sheet pile if it stops penetrating. If the vibrator is stalled, the soil may be too dense (e.g., heavy clay or high blow-count soils) or the equipment undersized. Pushing excessively causes severe damage to both the vibrator unit and the sheet pile clutches. Let the vibration do the work.
• Exclusion Zones: Sheet pile drivers are heavy and generate airborne debris. Establish clear exclusion zones around the machine, particularly during slewing or reversing. No personnel should be within the drop zone or operating radius without explicit communication with the operator.
• Clamping: Ensure the jaws are clamped evenly on the center face of the sheet pile. Avoid clamping on edges or corners, which can warp the sheet pile and damage the internal elastomers of the equipment.
• Hydraulic Setup: Ensure the excavator and vibratory head are compatible. It is highly recommended that a trained hydraulic technician sets and tests the auxiliary piping (flow and pressure) before you begin piling to prevent blown lines or motor damage.

Excavator Mounted Vibrators: Common Questions

Hire Excavator Mounted Vibrators Nationwide

Site Equipment Ltd supplies a robust range of excavator mounted vibrators across the UK, available for hire or purchase. With full temporary works design capabilities in-house, we can help you specify the exact EMV unit and trench sheet combination for your ground conditions. Contact your local depot for a competitive quote.
