Standard Trench Box System image 1

Standard Trench Box System

The heavy-duty workhorse for typical drainage, sewer and deep utility trenches

  • Up to 5.3m digging depth
  • 1.5m under-strut pipe clearance
  • External widths up to 4.48m
  • 2.6m base and 1.4m top boxes
  • Available for sale and hire
  • Nationwide delivery or depot collection

The Standard Trench Box system is our heavy-duty workhorse trench shield for typical drainage, sewer, and utility excavations. Designed to support unstable ground and withstand high earth pressures, this modular shoring system allows contractors to safely lay pipes at depths of up to 5.30m.

Available for sale and hire across the UK, SEL's Standard system pairs robust 2.6m base boxes with 1.4m top boxes. It strikes the ideal balance between heavy-duty capacity and practical site handling, making it the bedrock of most deep groundwork projects.

Core capabilities and applications

The default choice for drainage. If you are excavating a standard sewer or deep utility trench, our Standard Trench Box is the correct system. It provides a generous 1.50m of pipe clearance beneath the lowest struts, making it ideal for:

  • Deep trench excavations in unstable ground
  • Large diameter pipe laying and culvert installation
  • Deep utility and drainage works
  • Large chamber construction

For exceptionally large culverts requiring more than 1.50m clearance, we recommend our Hi-Clear Box System. Conversely, for shallow, restricted urban works, our Lightweight Trench Boxes are often more capable.

Operational mechanics and capacity

Modular depth capability. The system is highly adaptable to the demands of deep excavations. By bolting up to two 1.4m top boxes onto the 2.6m base box (using box connection units and heavy-duty pins), the system can safely shore trenches down to a recommended maximum depth of 5.30m.

Adjustable widths. The trench width is controlled by swapping the strut system between Mini, Midi, or Maxi adjustable spindles. With the addition of spindle extension pieces, the external width can be expanded from a narrow 0.85m right up to a massive 4.48m.

Dig and push installation. Because the Standard Box is deployed in deeper, often unstable or water-bearing ground, it is designed for the "dig and push" method. The base box is placed in a shallow pre-excavated trench (maximum 1.25m deep), and an excavator digs from within the box, pushing the heavy steel panels down incrementally as the excavation progresses. This ensures the groundworkers are never exposed to unsupported earth.

Temporary Works Design

Achieving depths of 5.30m safely requires rigorous engineering oversight. Here at Site Equipment Limited we provide full Temporary Works Design services from our in-house engineering team to ensure our Standard Trench Box system is specified correctly for your exact ground conditions and earth pressure requirements. Simply get in touch and we can offer a free consultation.

Standard Trench Box: Common Questions

Which trench box suits a typical utility or drainage trench?
SEL's Standard Trench Box is the most suitable system for a typical utility or drainage trench. It is engineered to handle deep excavations up to 5.30m while providing 1.50m of pipe clearance, making it the heavy-duty default for standard sewer works.
What sizes do SEL's Standard Trench Boxes come in?
Our Standard Trench Boxes come in plate lengths ranging from 2.50m up to 4.50m. The system utilises a 2.60m-high base box, which can be extended using 1.40m-high top boxes to reach the required depth.
What is the maximum width of a Standard Trench Box?
The maximum external width of SEL's Standard Trench Box is 4.48m. This width is achieved by using the Maxi adjustable spindles combined with the appropriate spindle extension pieces.
How is maximum usable depth determined?
The maximum usable depth is determined by specific ground conditions and a formal Temporary Works Design. However, in suitable conditions, our Standard Trench Box system is rated to safely support excavations up to 5.30m deep.
How much does it cost to hire a Standard Trench Box from SEL?
The cost to hire our Standard Trench Box depends on the length of the box, the number of top boxes required, and the duration of the project. Please contact our hire desk for a competitive, job-specific quotation.

Sale and Hire of Standard Trench Box Systems

We supply Standard Trench Box systems for sale and hire across the UK, backed by expert technical advice. Please contact SEL for further information or to get a competitive quote from your nearest depot.

Dimensions

Box length LPanel height HClearance Between struts LCPipe clearance Beneath struts hC
mmmm
2.502.60 Base 1.40 Top2.101.50
3.002.60 Base 1.40 Top2.601.50
3.502.60 Base 1.40 Top3.101.50
4.002.60 Base 1.40 Top3.601.50
4.502.60 Base 1.40 Top4.101.50

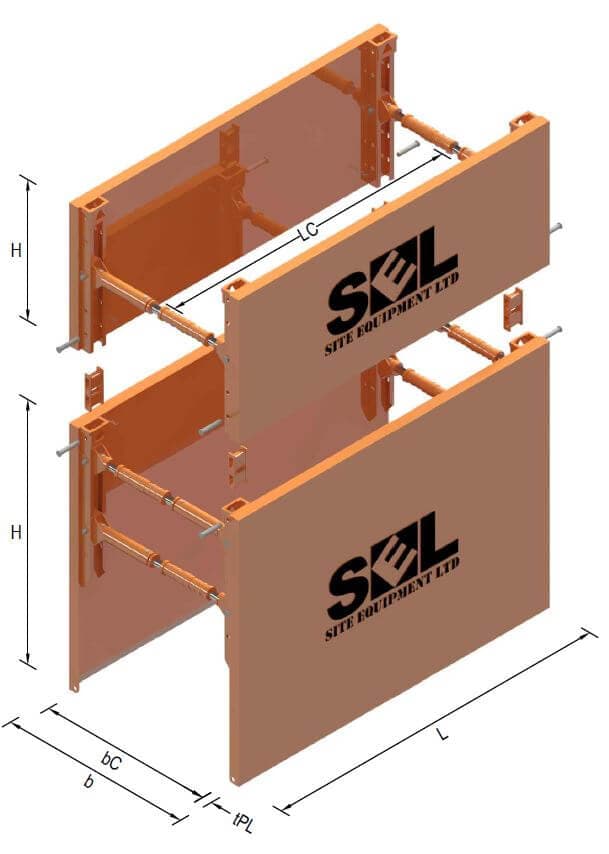

Standard Trench Box dimensions diagram

Permissible Earth Pressure

Box length LPanel height HThickness t PLExternal Width (b) v Permissible Earth Pressure
kN/m2
< 3.0m< 3.5m< 4.0m<4.5m
mmmm
2.502.60 Base 1.40 Top10757.051.742.733.6
3.002.60 Base 1.40 Top47.543.035.628.0
3.502.60 Base 1.40 Top40.736.930.524.0
4.002.60 Base 1.40 Top35.632.226.721.0
4.502.60 Base 1.40 Top12733.730.525.219.8

Max weight per complete box

Box Length LPanel Height HMaximum Weight per complete box
mmkg
Mini-0.0Midi-0.0Maxi-0.0Maxi-0.5Maxi-1.0Maxi-1.5Maxi-2.0Maxi-2.5Maxi-3.0
2.52.6 Base168017081741182018991978205821372216
1.4 Top99010031020106011001139117912181258
3.02.6 Base193519631996207521542233231323922471
1.4 Top113411481165120512451284132413631403
3.52.6 Base218022082241232023992478255826372716
1.4 Top128012931310135013901429146915081548
4.02.6 Base242024482481256026392718279828772956
1.4 Top142514381455149515351574161416531693
4.52.6 Base295029783011309031693248332834073486
1.4 Top181018231840188019201959199920382058

Spindle chart

Box Spindle TypeTrench Box / Hi-Clear Box
Internal WidthExternal Width
bCb
mm
Mini-0.00.65 – 0.750.85 – 0.95
Mini-0.51.15 – 1.251.35 – 1.45
Mini-1.01.65 – 1.751.85 – 1.95
Mini-1.52.15 – 2.252.35 – 2.45
Mini-2.02.65 – 2.752.85 – 2.95
Mini-2.53.15 – 3.253.35 – 3.45
Mini-3.03.65 – 3.753.85 – 3.95
Midi-0.00.83 – 1.021.03 – 1.22
Midi-0.51.33 – 1.521.53 – 1.72
Midi-1.01.83 – 2.022.03 – 2.22
Midi-1.52.33 – 2.522.53 – 2.72
Midi-2.02.83 – 3.023.03 – 3.22
Midi-2.53.33 – 3.523.53 – 3.72
Midi-3.03.83 – 4.024.03 – 4.22
Maxi-0.00.98 – 1.261.20 – 1.48
Maxi-0.51.48 – 1.761.70 – 1.98
Maxi-1.01.98 – 2.262.20 – 2.48
Maxi-1.52.48 – 2.762.70 – 2.98
Maxi-2.02.98 – 3.263.20 – 3.48
Maxi-2.53.48 – 3.763.70 – 3.98
Maxi-3.03.98 – 4.264.20 – 4.48
For 4.50m long Trench boxes, add 40mm to the ‘External Width' column.

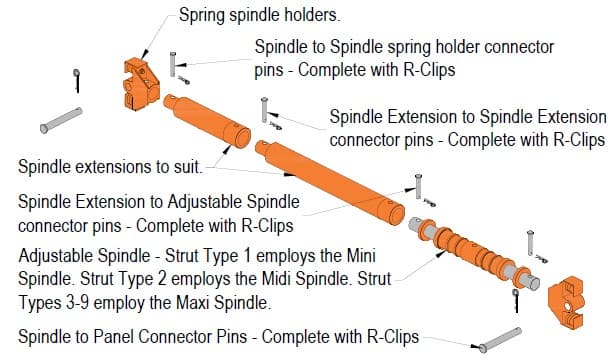

Standard Trench Box spindle chart

Standard Trench Box Information Sheet

Standard Trench Box User Guide
